Product code: N/A
Wing
Wing Prezzo su richiesta
Horses
Horses Prezzo su richiesta

Angel

Prezzo su richiesta

The price is to be defined based on measurements and characteristics Main features
  • Type Approved watertight 3mt. certfied
  • Powder painted std colour RAL 9010 Aisi 316 leaf 6mm with holes for UNI 5732 screws
  • Aluminium door powder painted RAL 9010
  • 4 Stainless steel Adjustable hinges
  • Open/close sensor
  • Stainless steel hinge bolts
  • SS Aisi 316 central closing system (toggle)

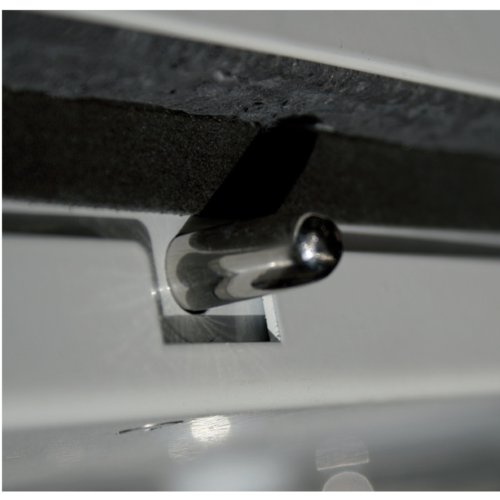

  • 8 SS Aisi 316 dogs docking diam 12mm
Options
  • Painting on request
  • Polished stainless steel Leaf
  • Leaf with fixing holes for UNI 5933 screws
  • Closing system by means of a central stainless steel wheel
  • Acoustic insulation
  • Back flange in SS Aisi 304 polished or painted
  • Gasket leaf-wall
On request: central stainless steel wheel

Data sheets

Download the files here

PDF_icon
DWG_icon
DXF_icon
